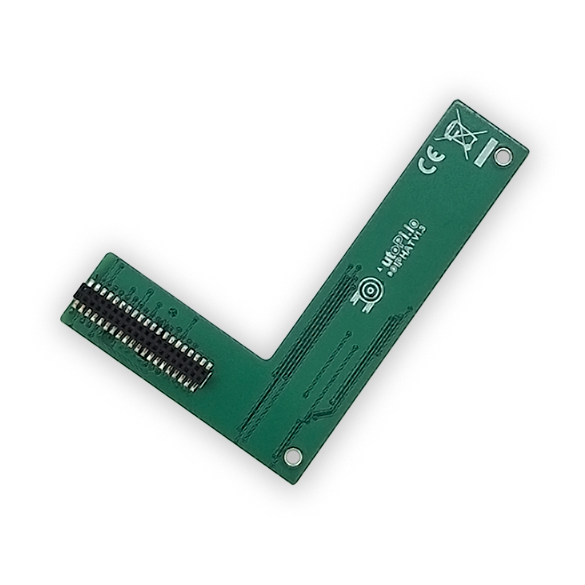

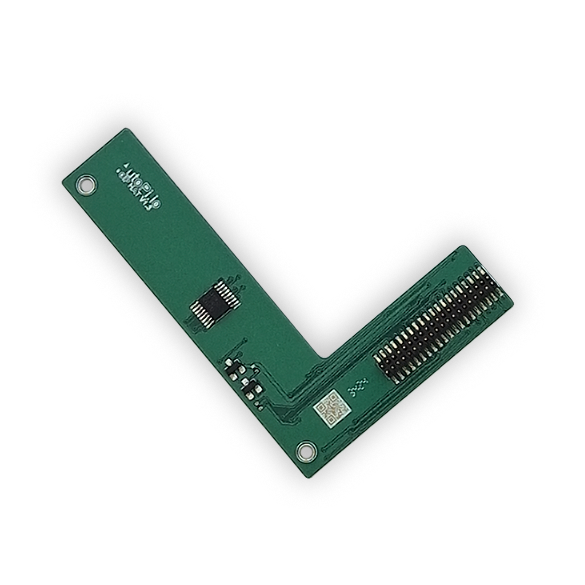

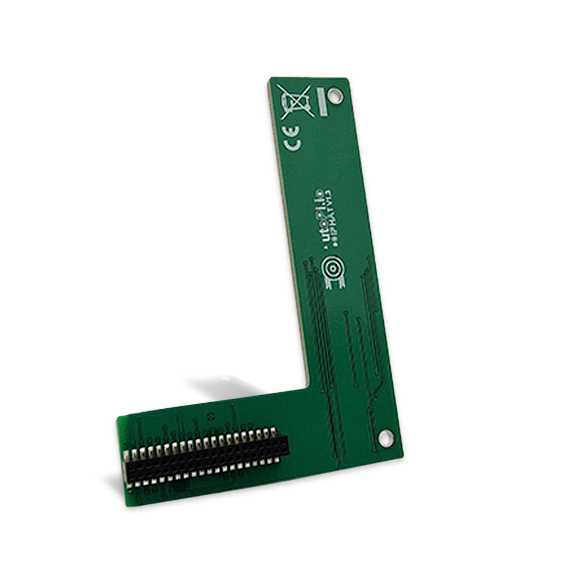

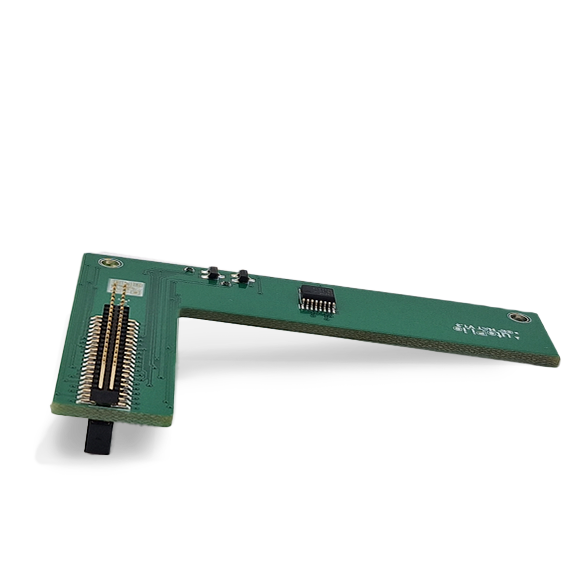

DoIP HAT for AutoPi TMU

The DoIP HAT is a highly advanced interface module designed to enhance vehicle diagnostics using the DoIP protocol (Diagnostics over Internet Protocol). With high-speed Ethernet connectivity and support for multiple protocols, this module ensures accurate communication and comprehensive diagnostic capabilities for modern vehicles.

Technical Overview:

An advanced DoIP (ISO 13400) interface module designed for enhanced diagnostic communication with vehicle ECUs, leveraging high-speed Ethernet connectivity for real-time data analysis.

Performance Advantages:

• DoIP Protocol Support: Fully compliant with ISO 13400 standards for efficient communication with vehicle systems, enabling precise diagnostics and firmware updates.
• High-Speed Ethernet Connectivity: Provides fast and reliable data transfer, essential for real-time diagnostics and monitoring.
• Multi-Protocol Compatibility: Supports UDS (Unified Diagnostic Services) and other key automotive protocols across a wide range of vehicle makes and models.
• Rugged Construction: Engineered for durability, the HAT is built to withstand harsh automotive environments for consistent performance.
• Quick Deployment: Designed for plug-and-play installation on compatible devices, simplifying the setup process for fast implementation.

Application Scope:

Ideal for automotive workshops, testing centers, and manufacturers requiring advanced diagnostics, real-time vehicle monitoring, and firmware updates.

Follow this guide to setup your DoIP HAT.

Specifications:
