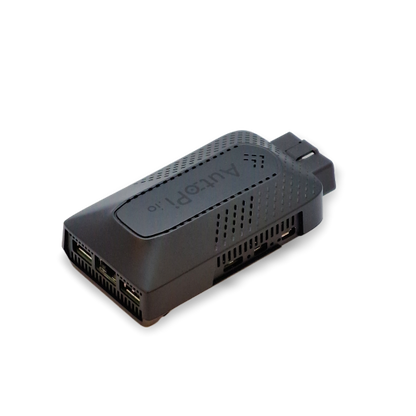

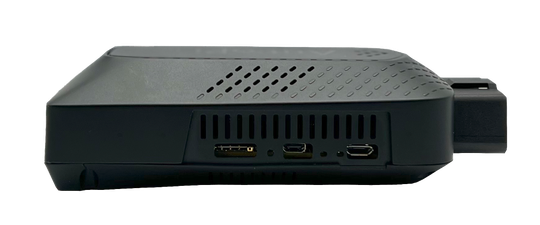

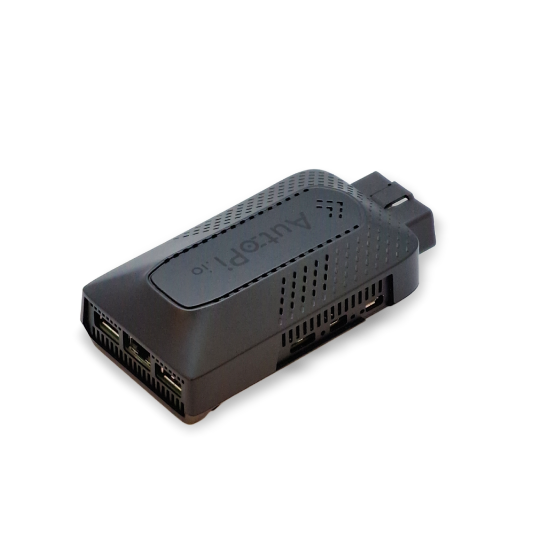

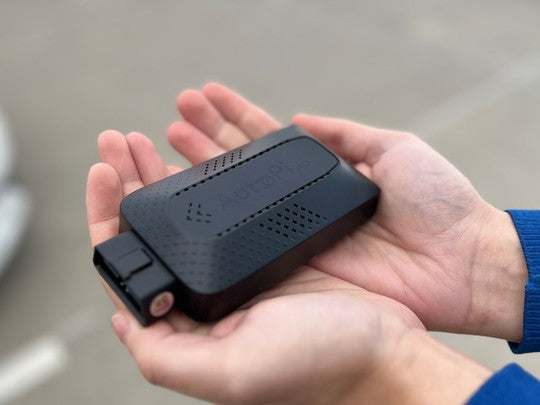

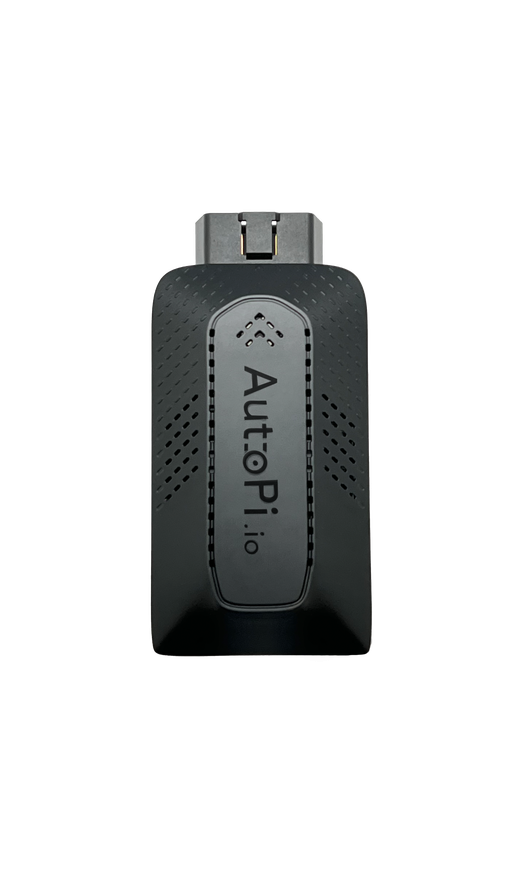

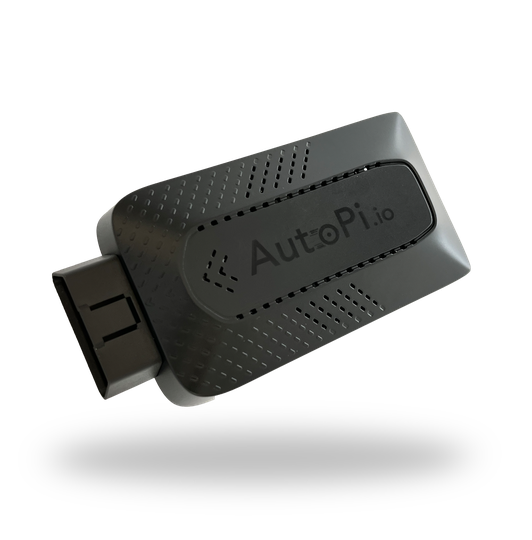

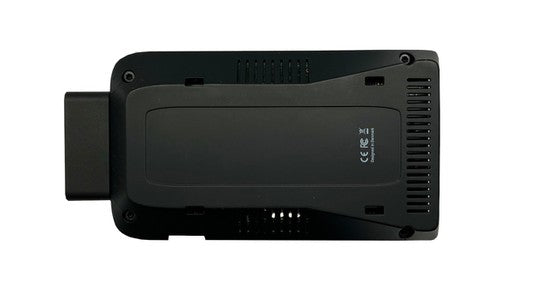

The 2nd-generation AutoPi — built on the Compute Module 4 from Raspberry Pi.
The fast and robust AutoPi TMU CM4 allows for even more possibilities and comes with plenty of new benefits. It is one of our biggest innovations to date. More processing power, Dual USB port, Ethernet port, power button and upgraded smart power manager built on the RP2040, and much more.
For large volume discounts, contact sales@autopi.io for more details.
Please notice: The device can be shipped with a built-in SIM card and one year subscription is mandatory. The subscription gives access to 100 MB/month of data in 188 countries. For more info about SIM subscription, see more here.
AutoPi SIM and Cloud is 6 EUR (aprox 6.33 USD) per month.
Line Voltage: 12.5V AC (Car battery power). Up to 35V (Trucks). Support for trucks with up to 35V
Expansion:
2 x USB, Gigabit Ethernet and HAT
Wireless:
WiFi: 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN Bluetooth: Bluetooth 5.0 + Bluetooth Low Energy (BLE)
Accelerometer:
3-Axis accelerometer
Gyroscope:
Built in 3-axis gyroscope
Automotive Interface:
2X CAN-FD interface or 2X CAN 2.0 (depending on variant) with up to 5Mbps Data rate with integrated CAN data filters. The CAN 2.0 variant supports bit rates of up to 500 KB/s.
EN 301 489-1 v2.2.0, EN55025:2008, EN 50498 and Directive 2004/104/EC, ISO 7637-2:2011, EN 301 489-3 V2.1.1, FCC 47 CFR Part 15, Class A:10–1–17 Edition
Absolute Maximum Operating Environment:
Operating Temperature: -20° TO 70° C (-4° TO 158° F) Relative Humidity: 0% TO 75% Noncondensing
Operating System:
Raspbian OS with preconfigured AutoPi Core software
