AutoPi CAN-FD Pro + IP67 Casing
AutoPi CAN-FD Pro + IP67 Casing
Couldn't load pickup availability
Available for pre-order now. Ships January 2025.

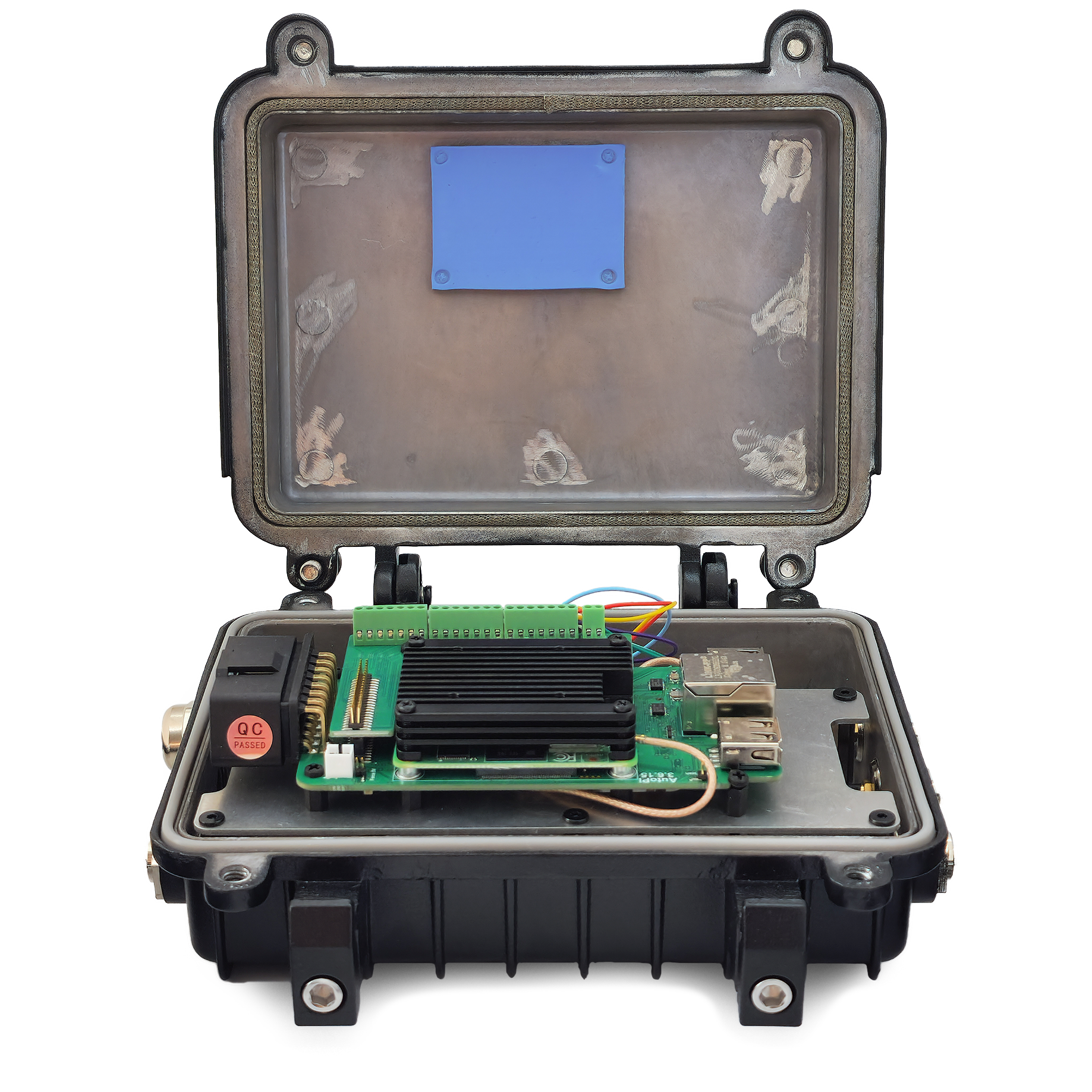

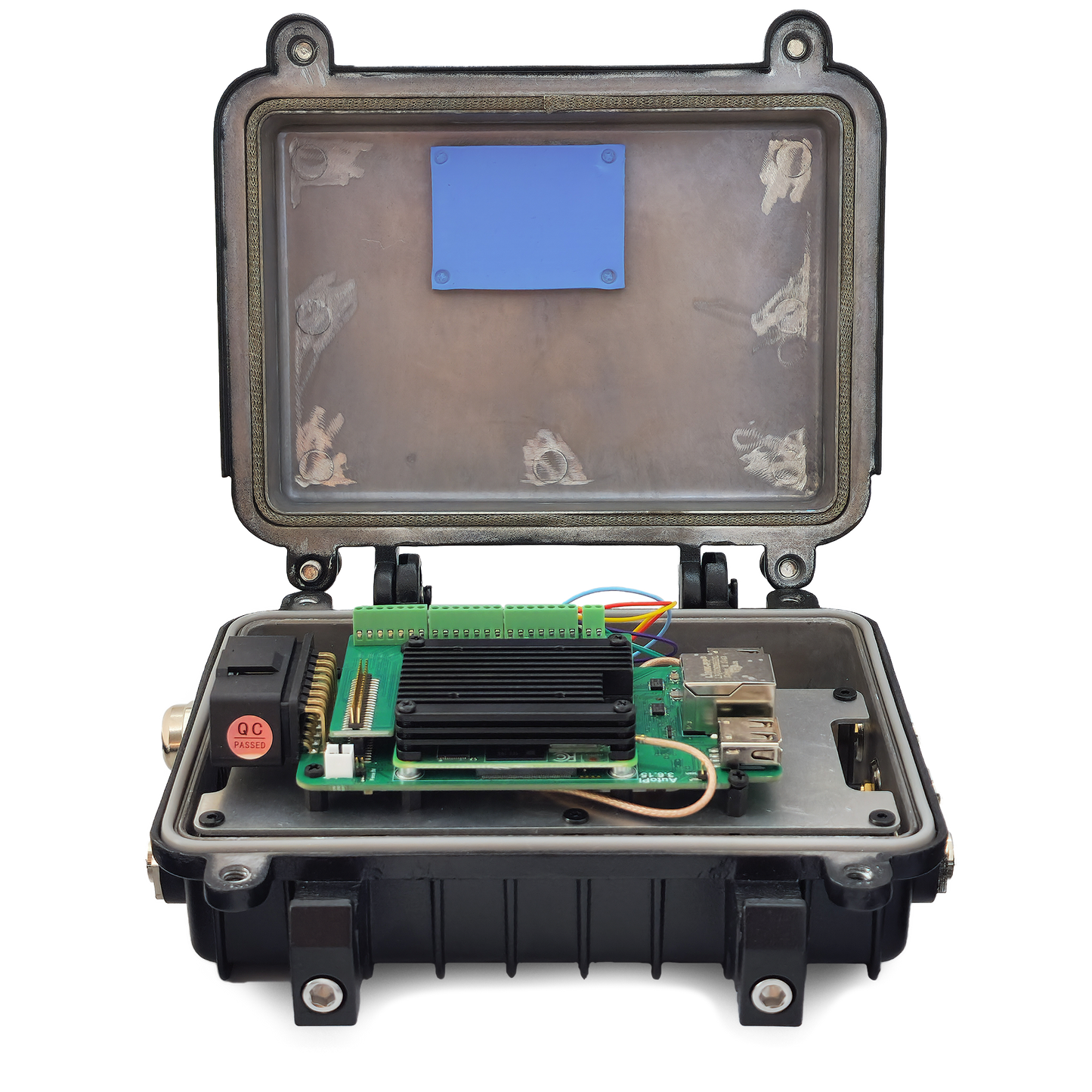

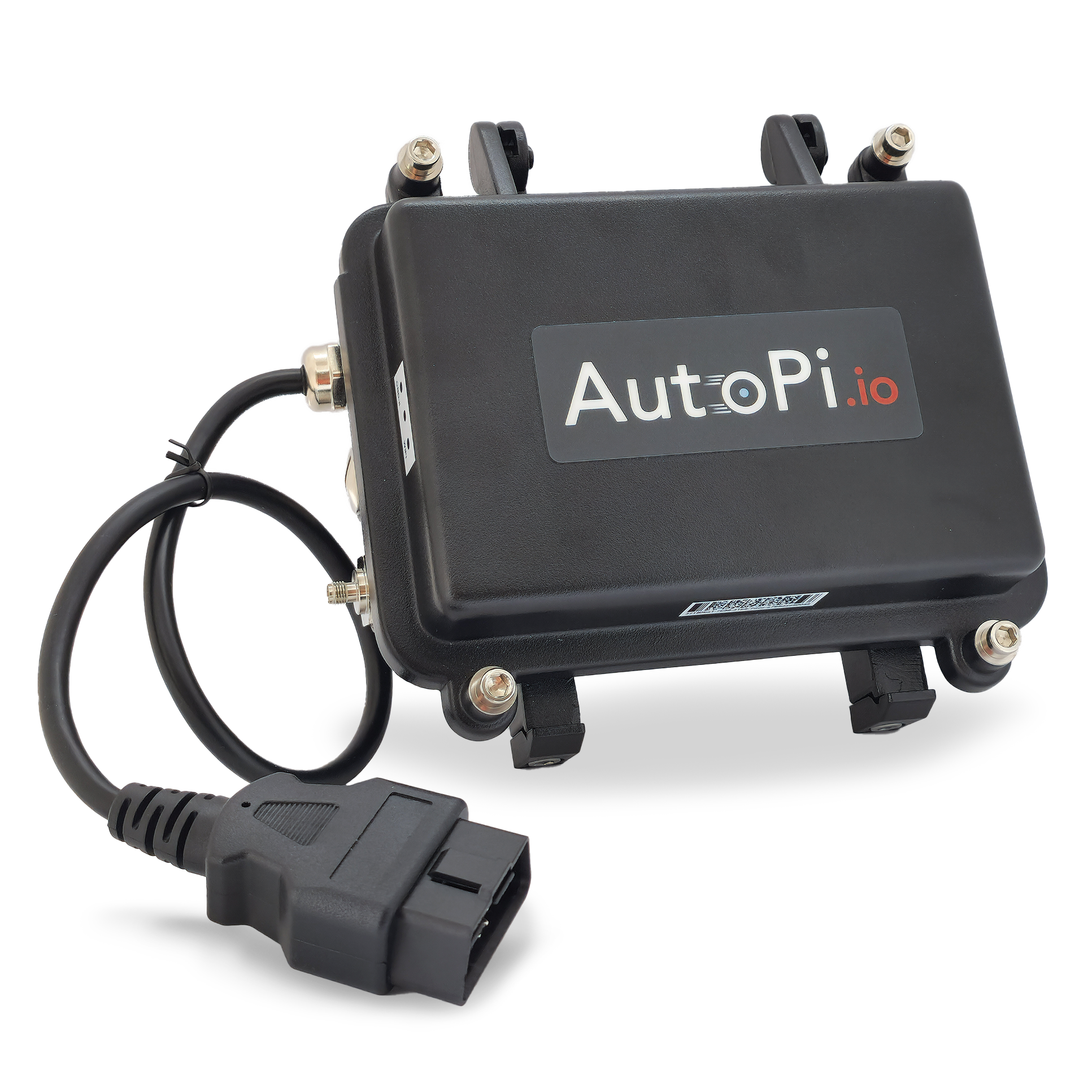

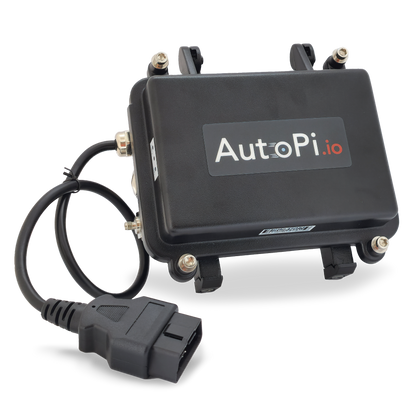

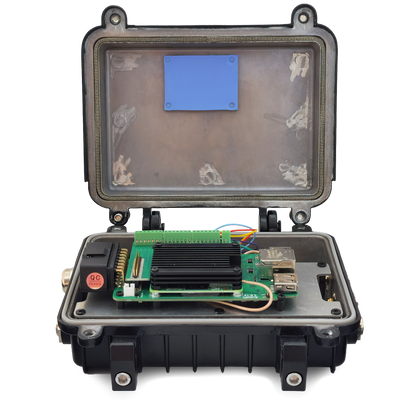

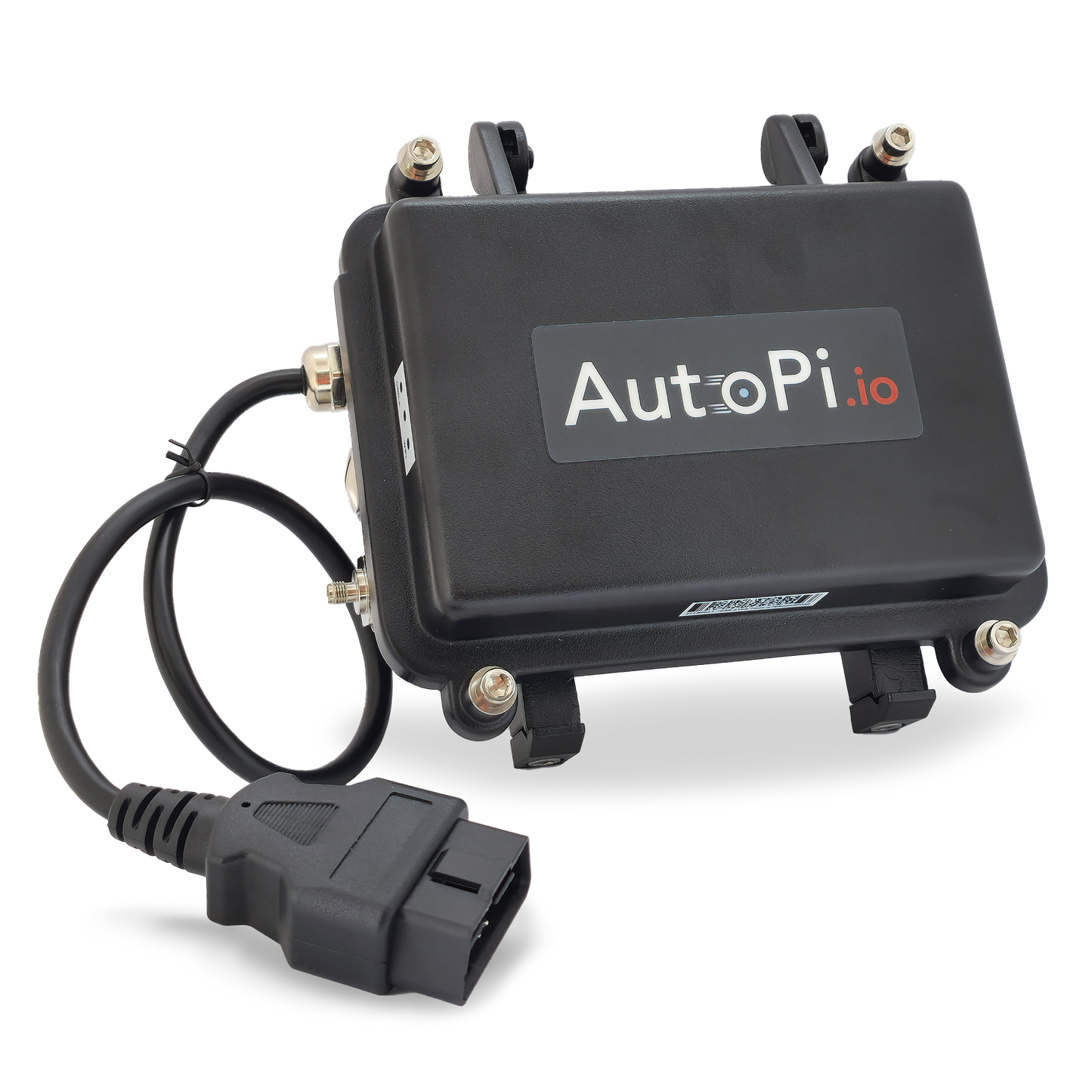

Our CAN-FD Pro packed in an IP67 rated aluminum casing. Perfect for rugged installations in wet or dusty environments.

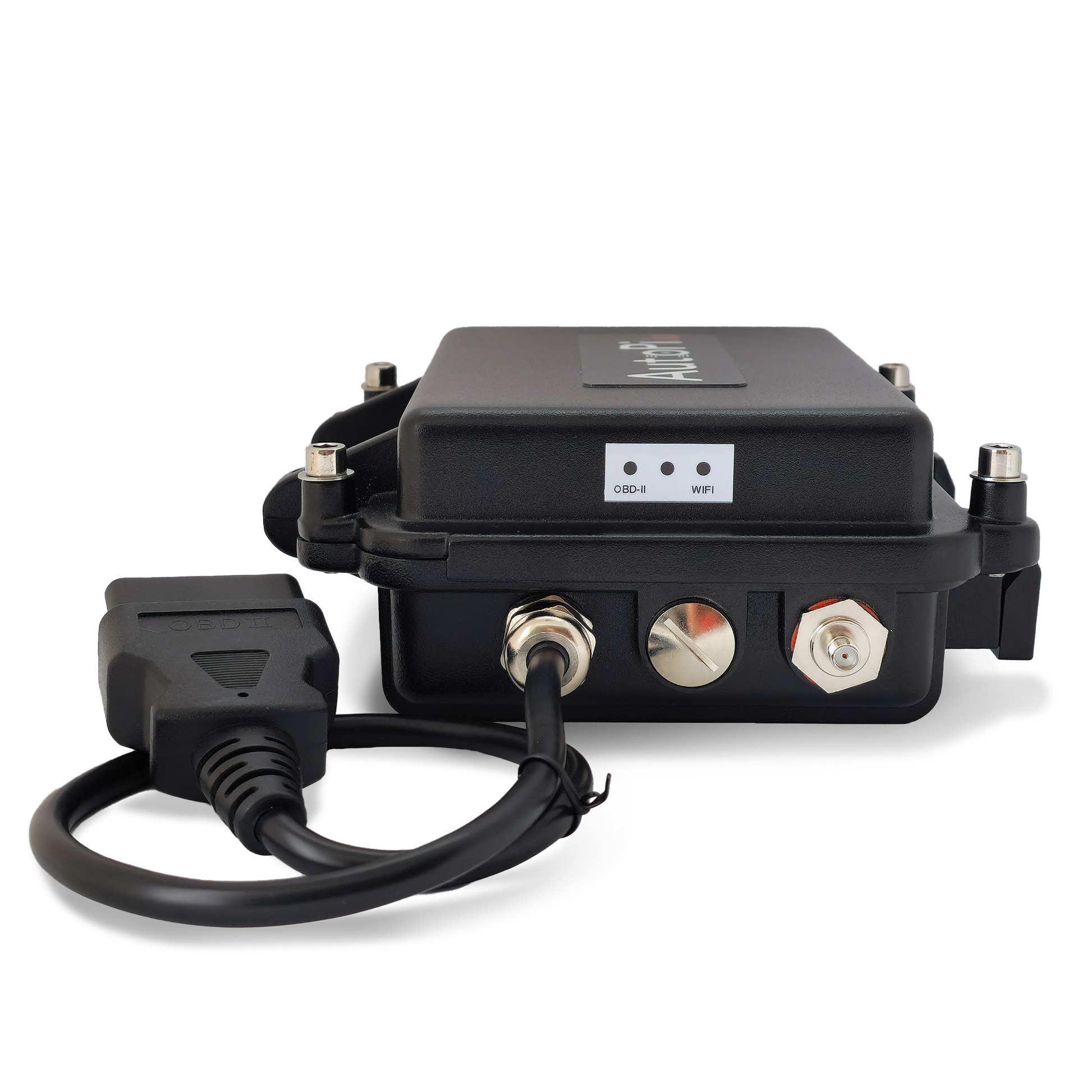

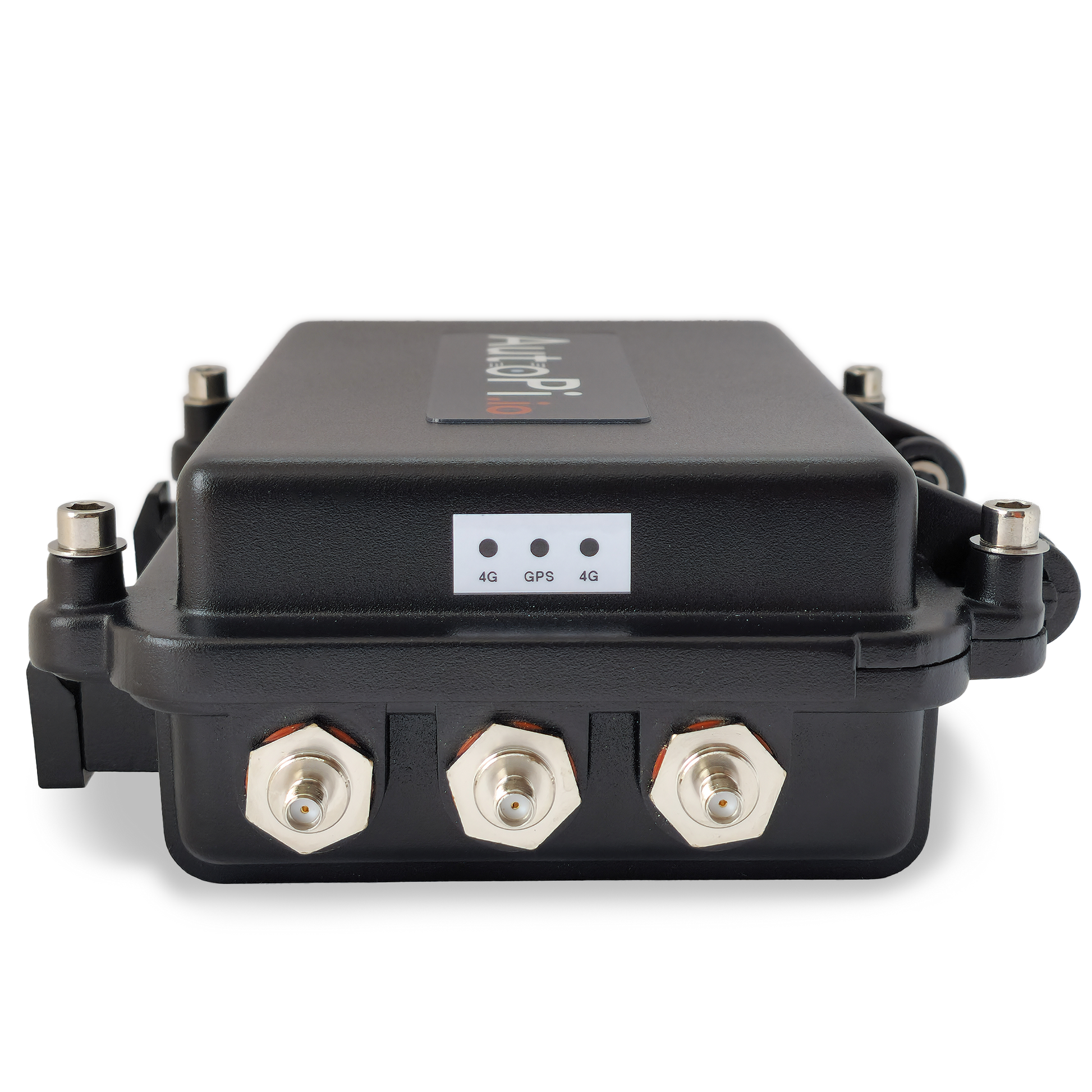

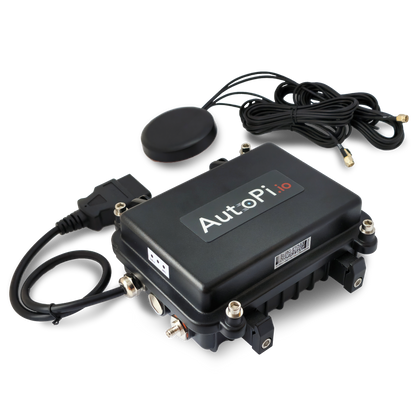

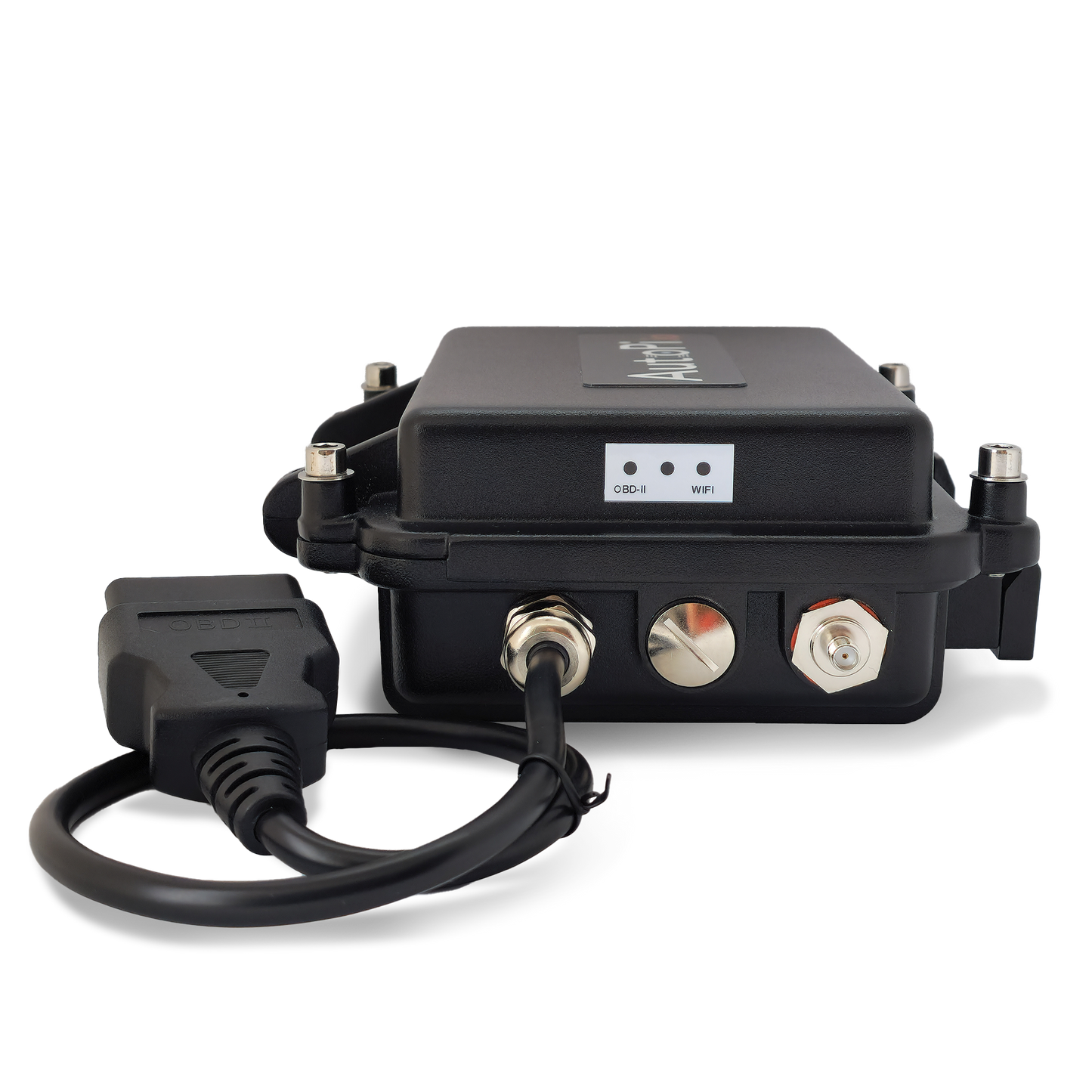

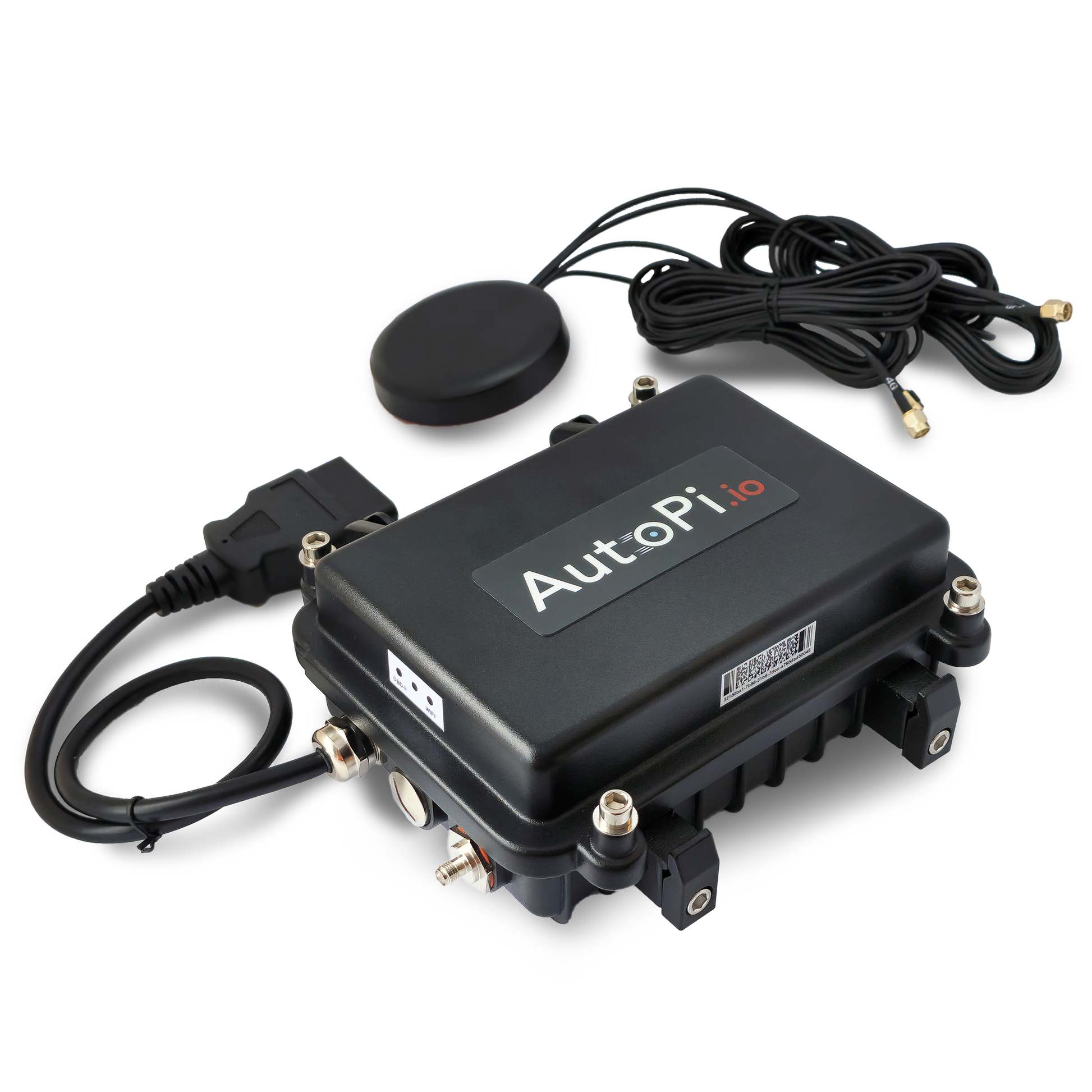

Comes with external outputs for power, automotive interface and external antennas (2x LTE, 1x GPS, 1x WiFi/BLE)
Dimensions: 160mm x 110mm x 60mm (L/W/H)
--------
The AutoPi CAN-FD Pro most powerful device to date, designed for full speed automotive datalogging of dual CAN-FD channels. The device comes with 32Gb storage, which is extendable with a flashdrive. With a built-in 4G/LTE modem, the device can securely push data to your cloud solution. The device is build on the Raspberry Pi Compute Module
Software is 100% free and included, no subscriptions. Use AutoPi Cloud for device management, device diagnostics and device Over-The-Air configuration and updates.
- Full CAN bus logging of dual CAN/CAN-FD buses, with support for additional CAN buses through external interfaces
- 32GB embedded storage, with support for external USB drives for additional storage
- Continuous upload of raw or decoded CAN data to external storage like AWS S3
- Support of mixed/simultaneous 11 bit and 29 bit frame IDs. Support sending CAN queries (PIDs, PGNs)
- Onboard CAN decoding using DBC, Python etc. - no server-side decoding needed
- Remote live debugging and interaction with CAN buses through secure VPN (Tailscale)
- Open source system based on standard Linux, SocketCAN and Python.
- Support for hardware encryption/data signing using on-board secure element.
- Plug-and-play, no configuration required before installation in any 12V or 24V vehicle or machinery
For large volume discounts, contact sales@autopi.io for more details.
Pro-specifications in a compact device
| Processor: | Broadcom BCM2711 Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz (RPi CM4) |
| Memory: | 4GB LPDDR2 SDRAM |
| Storage: | 32GB on board eMMC (expandable with USB flash drive) |
| Modem: | Integrated 4G/LTE Cat 4 connection (3G/EDGE fallback) (150Mbit DL / 50Mbit UL) (Global connectivity in a single device) |
| Secure Element: | Sign and encrypt data |
| Bluetooth: | v5.0/BLE |
| GPS/GNSS: | Integrated GPS + A-GPS (GPS/GLONASS/BeiDou/Galileo/QZSS) |
| Power: | Line Voltage: 12.5V AC (Car battery power). Up to 35V (Trucks). Support for trucks with up to 35V |
| Expansion: | 2 x USB, Gigabit Ethernet and HAT |
| Wireless: | WiFi: 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN Bluetooth: Bluetooth 5.0 + Bluetooth Low Energy (BLE) |
| Accelerometer: | 3-Axis accelerometer |
| Gyroscope: | Built in 3-axis gyroscope |
| Automotive Interface: | 2X CAN-FD interface with up to 5Mbps Data rate with integrated CAN data filters |
| Input Slots: | SIM Card: Nano SIM - (SIM subscription purchased separately) |
| Audio: | Built-in speakers |
| Video Out: | mini HDMI @ 1080p60 Video Output |
| Operating System: | Raspbian OS with preconfigured AutoPi Core software |
