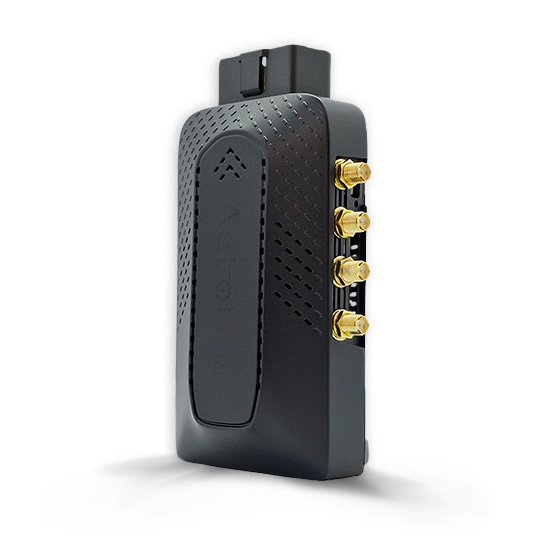

AutoPi CAN-FD Pro

AutoPi CAN-FD Pro

€599,00 EUR
€599,00 EUR
Sale Sold out

Available for pre-order now. Ships January 2025.

Our most powerful device to date, designed for full speed automotive datalogging of dual CAN-FD channels. The device comes with 32Gb storage, which is extendable with a flashdrive. With a built-in 4G/LTE modem, the device can securely push data to your cloud solution. The device is build on the Raspberry Pi Compute Module

Software is 100% free and included, no subscriptions. Use AutoPi Cloud for device management, device diagnostics and device Over-The-Air configuration and updates.

  • Full CAN bus logging of dual CAN/CAN-FD buses, with support for additional CAN buses through external interfaces
  • 32GB embedded storage, with support for external USB drives for additional storage
  • Continuous upload of raw or decoded CAN data to external storage like AWS S3
  • Support of mixed/simultaneous 11 bit and 29 bit frame IDs. Support sending CAN queries (PIDs, PGNs)
  • Onboard CAN decoding using DBC, Python etc. - no server-side decoding needed
  • Remote live debugging and interaction with CAN buses through secure VPN (Tailscale)
  • Open source system based on standard Linux, SocketCAN and Python.
  • Support for hardware encryption/data signing using on-board secure element.
  • Plug-and-play, no configuration required before installation in any 12V or 24V vehicle or machinery

For large volume discounts, contact sales@autopi.io for more details.

Pro-specifications in a compact device

Processor: Broadcom BCM2711 Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz (RPi CM4)
Memory: 4GB LPDDR2 SDRAM
Storage: 32GB on board eMMC (expandable with USB flash drive)
Modem: Integrated 4G/LTE Cat 4 connection (3G/EDGE fallback) (150Mbit DL / 50Mbit UL) (Global connectivity in a single device)
Secure Element: Sign and encrypt data
Bluetooth: v5.0/BLE
GPS/GNSS: Integrated GPS + A-GPS (GPS/GLONASS/BeiDou/Galileo/QZSS)
Power: Line Voltage: 12.5V AC (Car battery power). Up to 35V (Trucks). Support for trucks with up to 35V

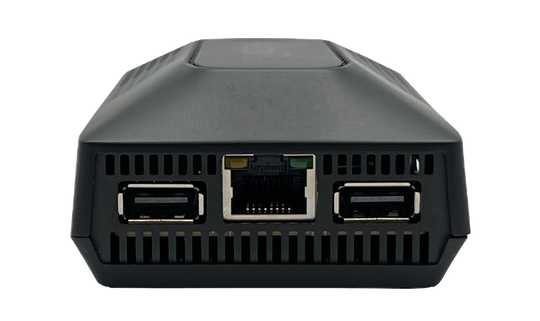

Expansion: 2 x USB, Gigabit Ethernet and HAT
Wireless: WiFi: 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN
Bluetooth: Bluetooth 5.0 + Bluetooth Low Energy (BLE)
Accelerometer: 3-Axis accelerometer
Gyroscope: Built in 3-axis gyroscope
Automotive Interface: 2X CAN-FD interface with up to 5Mbps Data rate with integrated CAN data filters
Input Slots: SIM Card: Nano SIM - (SIM subscription purchased separately)
Audio: Built-in speakers
Video Out: mini HDMI @ 1080p60 Video Output
Operating System: Raspbian OS with preconfigured AutoPi Core software
